Samson DK707 7-piece Drum Microphone Kit

The Samson DK707 7-piece drum mic kit is a complete drum recording package that doesn't cost a mint. A Q71 kick mic, four Q72 dynamic microphones, and two C02 pencil condensers reproduce the natural tone and impact of your drum set. At Sweetwater, we've found that the dynamic microphones excel on snares and toms, and the condensers craft an accurate 3D image of your drum kit when they're used as overheads. These mics offer superb off-axis noise rejection and effectively capture loud sources. Swivel-style mic adapters and tension-mounted rim clips make microphone placement child's play. The Samson DK707 7-piece drum mic kit includes a durable hardshell carry case for easy portability and storage.



Features:



• 7-piece drum mic kit
• One Q71 Kick Drum Microphone with swivel-style mic adapter
• Four Q72 Instrument Microphones with swivel-style mic adapters and tension-mounted rim clips
• Two C02 Pencil Condenser Microphones with shock-mounted swivel-style mic adapters
• Includes hardshell carry case







Specifications:



Q71 - Kick Drum Microphone

• Type: Dynamic Microphone
• Polar Pattern: Super Cardioid
• Frequency Response: 50~16000 Hz
• Sensitivity: -62 dBV/pa (0.8mv/pa)
• Rated Impedance: 200Ω
• Max. SPL: 147 dB (THD≤ 0.5% 1000 Hz)
• Weight: 370g



Q72 - Snare/Tom-Tom Microphone

• Type: Dynamic Microphone
• Polar Pattern: Super Cardioid
• Frequency Response: 50~16000 Hz
• Sensitivity: -55 dBV/pa (0.78mv/pa)
• Rated Impedance: 200Ω
• Max. SPL: 133 dB (THD≤ 0.5% 1000 Hz)
• Weight: 150g (with DMC 100)



C02 - Pencil Condenser

• Type: Condenser
• Polar Pattern: Cardioid
• Frequency Response: 40~20000 Hz
• Sensitivity: -40 dBV/pa (10mv/pa)
• Rated Impedance: 200Ω
• Equivalent Noise Level: 22 dB (A-weighted IEC/DIN 651)
• Max. SPL: 134 dB (THD≤ 0.5% 1000 Hz)
• Dynamic Range: 112 dB
• Current Consumption: 3.5 mA
• Dimensions: ø20 x 150 mm
• Weight: 170g

























Capture the Full Essence of Your Bass Drum



The Q71 is a dynamic kick drum microphone designed to capture the low end of the bass drum. The frequency response is tailored to reproduce the full range of the instrument, including the body and punchy attack. Capable of handling high SPLs, the Q71 is optimized to capture the full essence of your bass drum, making it an excellent choice for both live performance and studio recording.













One Two Punch



The Q72 is a dynamic microphone designed for miking snare drums and tom-toms. It has a cardioid polar pattern that helps isolate each drum and eliminates off-axis noise and feedback. The Q72 has a frequency response of 50 Hz to 16 kHz, with a slight boost in the upper midrange to bring out the attack and clarity of drums. It also has a high SPL handling capability, allowing it to capture loud sound sources without distortion.

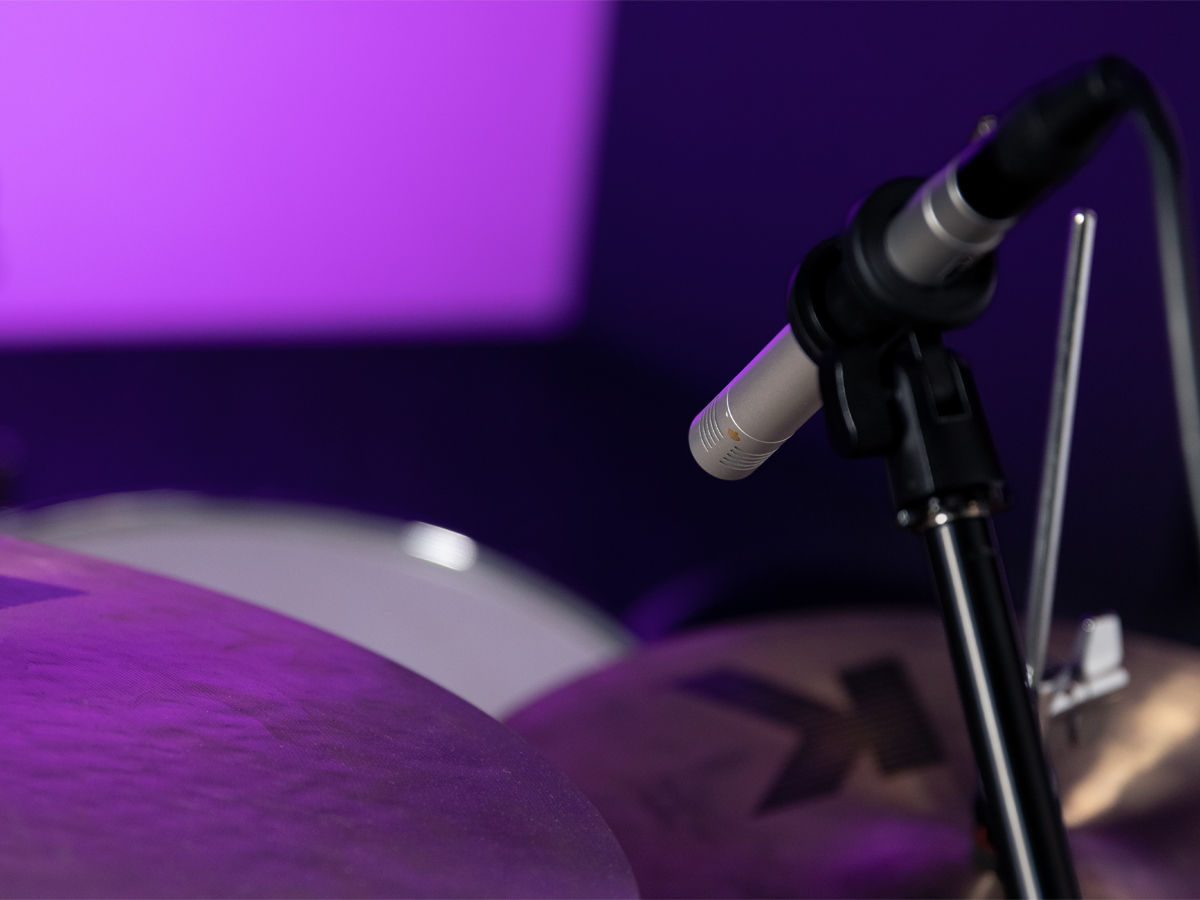

Capture the Brilliance



C02 pencil condenser microphones bring a high level of accuracy and audio performance to instrument miking applications. The matched pair is perfect for capturing the brilliance of your cymbals and the overall ambient sound of your drum kit. They can also be used to mic hi-hats, thanks to their smooth top end and ability to capture fast attack transients.

















Capture Loud Sources with Confidence



With swivel-style adapters for each microphone and tensioned rim clips for the Q72s, the DK707 makes setup quick and easy. And with the touring musician in mind, a deluxe hardshell carrying case is also included.
